Specifications

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Series	Pro
Wheel Size	27.5″
Tire Compatibility	Tubeless
Rim Depth	24mm
Inner Width	22.5mm
Outer Width	28mm
Rim Profile	Asymmetrical
Offset	2.6mm
Bead Type	Hookless

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Assembly Method	Handbuilt
Rim Finish	Glossy Marbled
Max Tire Pressure	50psi/3.4bar
Extras	Rim Tape(Installed), Tubeless Valves(Installed)
Weight (Pair)	1233g+(See FAQ Data information) (without tubeless valves and rim tape)
Rider Weight Limit	275lbs/125kg
Recommended Tire Sizes	1.9″-2.3″
Intended Use	Cross Country / Gravel
ERD	553mm
Certification	CE Certified

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Hub
Front Hub Spacing	QR x 100mm / 15x100mm / 15x110mm
Rear Hub Spacing	QR x 135mm / 12x142mm / 12x148mm
Bearing	TPI Steel
Brake Compatibility	Disc (Center Lock/6-bolt)
Freehub Type	Ratchet System 36T
Freehub Compatibility	Shimano HG / SRAM XD / Shimano MS

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Spoke
Front Spoke Pattern	3X/3X
Rear Spoke Pattern	3X/3X
Spoke Count	28F/28R
Spoke Type	Sapim CX-Ray
Nipple Type	Sapim Secure Lock

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”4848″ img_size=”full” onclick=”link_image” title=”Elitewheels 27.5ER PRO28 Rims”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1748935925213{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

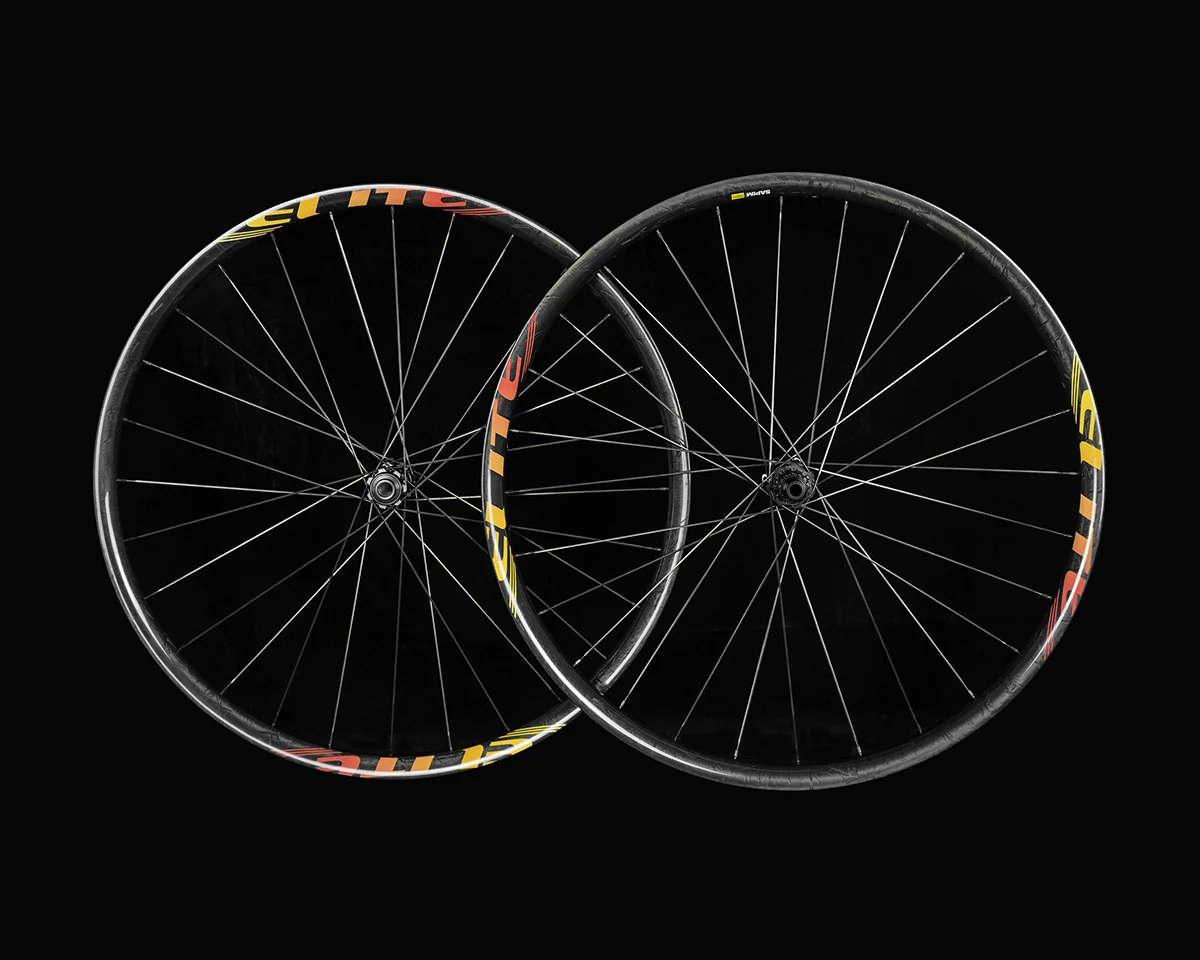

Feature

The Pro28 comes in at an ultralight 1233g for the pair. This allows for superior acceleration in cross country competitions as well as an advantage on steeper sections.

The inner rim is 22mm wide, supporting 1.9”-2.3” tires.
The rims are hookless, and extra rolled carbon fiber is added to reinforce the bead area, providing improved impact resistance and a significant boost in strength.

With Pro28’s 2.6mm offset, the spoke tensions on the drive side and the non-drive side have been made similar. This effectively improves the riding stability and cornering.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”57383″ img_size=”full” onclick=”link_image” title=”Elitewheels 27.5ER PRO28 Rims”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745725963517{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

RIMS

During the rim production process, internal inflatable bladders from a special material are used to produce smoother walls, resulting in a lighter rim. These bladders are then completely removed without the use of harsh chemicals through the valve hole. Our unique manufacturing process makes is so that the rim does not have to be patched to extract the bladders like traditional manufacturers. This significantly improves the strength of the rims.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”37470″ img_size=”full” onclick=”link_image” css=”.vc_custom_1748937214158{margin-top: -10px !important;}” title=”Elitewheels 27.5ER PRO28 Rim type”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1658137515924{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

RIM TYPE

The rims are asymmetrical. This allows for equal spoke tension which creates a stronger wheel that stays true.

We use both genuine Toray T700 and T800 carbon fiber which is superior to generic carbon fiber used by many manufacturers. The two types of carbon fiber are used in different places to increase the wheel’s strength to weight ratio while reducing lateral and radial forces as well as increasing impact resistance.

The rims have also been specifically designed to make sealing tubeless tires using a floor pump easy.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”4844″ img_size=”full” onclick=”link_image” css=”.vc_custom_1748937232894{margin-top: -10px !important;}” title=”Elitewheels 27.5ER PRO28 Hub”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745725979980{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

PERFORMANCE HUB

The Elitewheels Pro hub comes standard. DT Swiss hubs are also available.

The front and rear Pro hubs are made of 7075 aluminum alloy, the lightweight freebody features a ratchet system with 36 teeth.

The front and rear hubs use Taiwanese TPI bearings.

Discover the Hub Sound Here[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”4846″ img_size=”full” onclick=”link_image” css=”.vc_custom_1748937249163{margin-top: -10px !important;}” title=”Elitewheels 29ER PRO28 Spokes”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1663142882889{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

SPOKES

Sapim CX-Ray spokes come standard. We take precautions to ensure that spoke windup is minimized so wheels don’t go out of true. After the initial truing, the wheel is sideloaded. This process is repeated again. The wheels are sideloaded a total of 16 times. We see this as an essential quality control standard. As a result, our wheels are guaranteed to stay within 0.2mm of true.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]

In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
