Descripción

[vc_row css=”.vc_custom_1636434630693{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_column_text css=”.vc_custom_1694481756093{margin-right: 5% !important;margin-left: 5% !important;padding-left: 1em !important;}”]

Specifications

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Series	Drive
Wheel Size	700c
Tire Compatibility	Clincher/ Tubeless
Bead Type	Hooked
Rim Depth	50mm
Inner Width	30mm
Outer Width	37mm

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Hub
Front Hub Spacing	12x100mm
Rear Hub Spacing	12x142mm
Bearing	TPI Steel
Brake Compatibility	Disc(Center Lock)
Freehub Type	60T Ratchet
Freehub Compatibility	Shimano HG / SRAM XDR

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Spare Spokes4PCS

Spoke
Front Spoke Pattern	3X/Radial (2:1)
Rear Spoke Pattern	1X/3X(1:2)
Spoke Count	21F/24R
Spoke Type	Carbon Spoke(3.3mm)
Nipple Type	Carbon Secure Lock

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Rim Finish	Glossy Marbling Black
Extras	Rim Tape(Installed), Tubeless Valves(Installed)
Weight (Pair)	1385±30g (without tubeless valves and rim tape)
Rider Weight Limit	265lbs/120kg
Compatible Tire Sizes	700 x 40-60C
Recommended Tire Sizes	700 x 40-60C

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”99806″ img_size=”full” onclick=”link_image” title=”Drive G55 Carbon Spoke Gravel Wheelset Disc brake Rims”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1773046852839{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

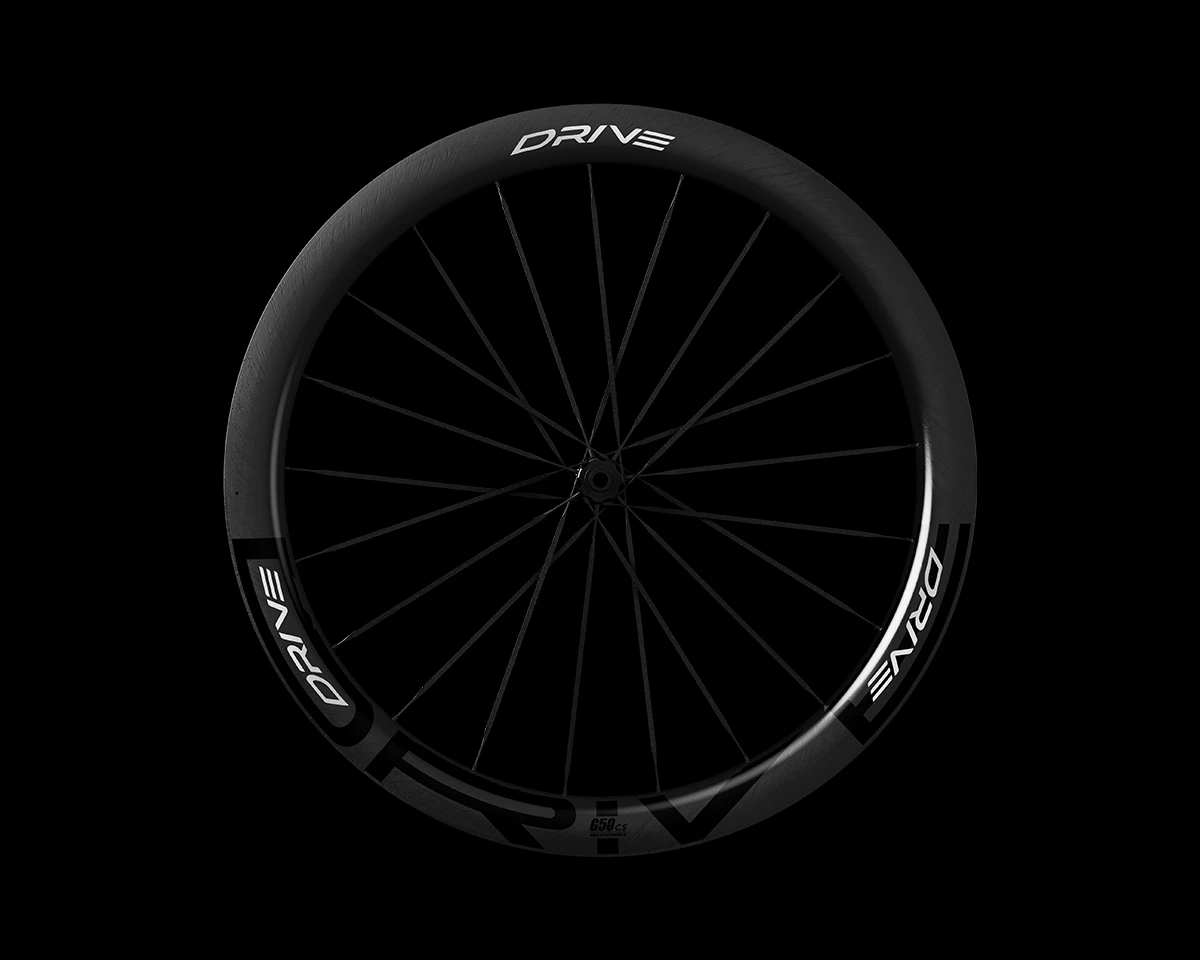

WIDE GRAVEL RIM DESIGN

The G50 CS is built around a carbon-spoke drilling rim structure combined with the CS spoke system. The rim features a 30 mm internal width and a hooked bead design, providing better tire support and improved stability when using larger gravel tires at lower pressures. This design enhances traction, cornering confidence, and comfort on rough terrain while maintaining the structural strength required for demanding gravel conditions.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”99805″ img_size=”full” onclick=”link_image” title=”Drive G50 Carbon Spoke Gravel Wheelset Disc brake Hubs” css=”.vc_custom_1773134534903{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1773046907615{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

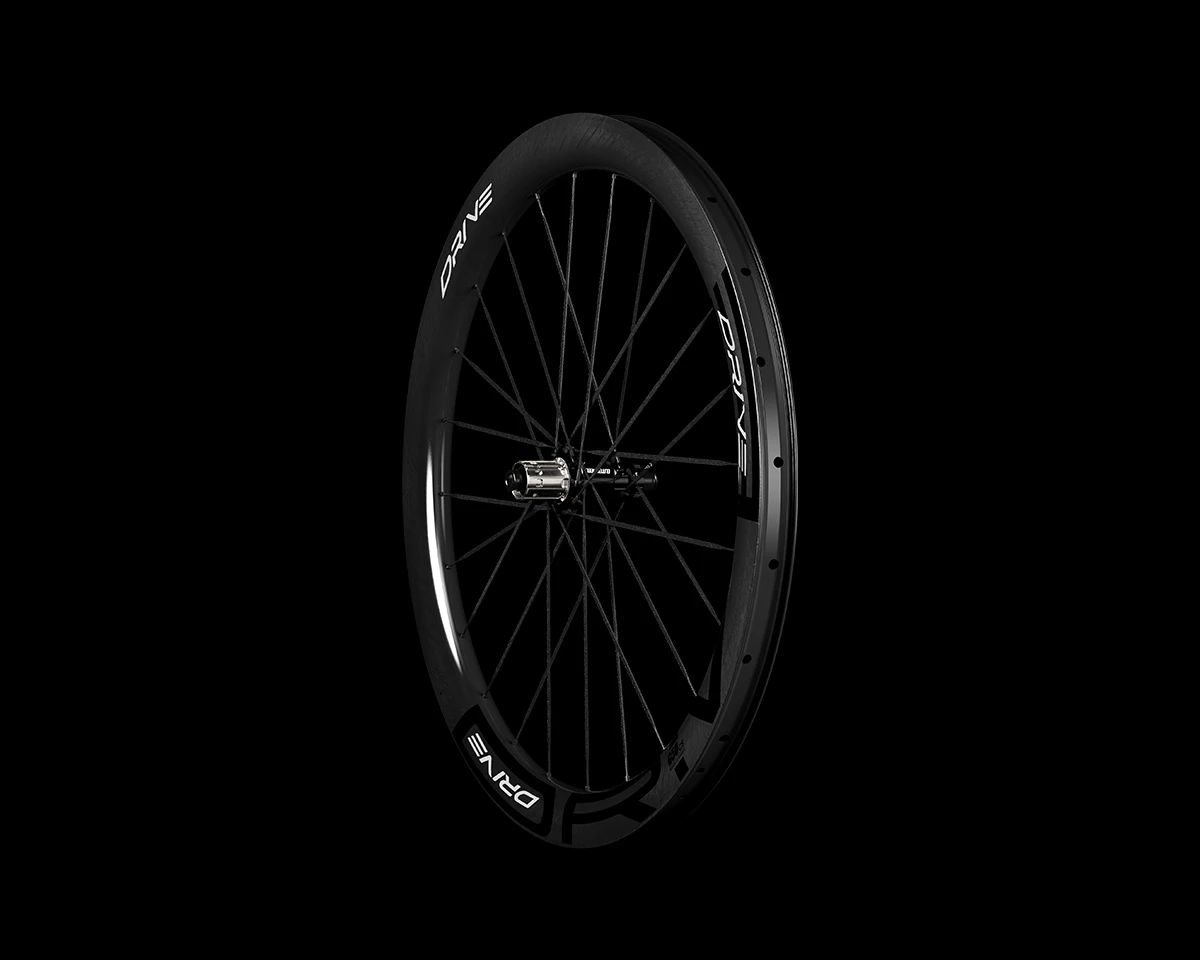

TORQUED DRIVE HUB SYSTEM

At the center of the wheelset is the Torqued Drive hub system, featuring a 60-tooth ratchet with a 6° engagement angle for fast and responsive power transfer. The hub adopts a 2:1 spoke flange design, helping balance spoke tension and improve overall wheel stiffness. A titanium alloy freehub body delivers direct and efficient power transmission while maintaining low weight and excellent durability. Equipped with TPI steel bearings, the hub also ensures smooth rolling performance and reliable long-term durability under demanding gravel riding conditions.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”99807″ img_size=”full” onclick=”link_image” title=”Drive G50 Carbon Spoke Gravel Wheelset Disc brake Spokes” css=”.vc_custom_1773134528618{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1773048724885{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

OPTIMIZED SPOKE CONFIGURATION

The 21 front / 24 rear spoke layout is engineered to balance stiffness and durability. The configuration supports efficient power transfer during hard efforts while maintaining enough structural compliance to absorb vibrations from rough terrain. This spoke arrangement helps maintain wheel stability when riding on loose surfaces or uneven gravel.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”99771″ img_size=”full” onclick=”link_image” title=”Drive G50 Carbon Spoke Gravel Wheelset Disc brake Durability” css=”.vc_custom_1773134518299{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1773049305792{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

DESIGNED FOR MODERN GRAVEL RIDING

The overall design philosophy of the G50 CS focuses on real-world gravel performance. The combination of lightweight construction, responsive hub engagement, and stable spoke structure ensures that the wheelset performs consistently across long gravel rides, endurance events, and mixed terrain routes where both efficiency and reliability are essential.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_single_image image=”12032″ img_size=”full” css=”.vc_custom_1668761782509{margin-right: 5% !important;margin-left: 5% !important;}” title=”in the box disc brake drive”][/vc_column][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]

In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
