Descripción

[vc_row css=”.vc_custom_1636434630693{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_column_text css=”.vc_custom_1659489538310{margin-right: 5% !important;margin-left: 5% !important;padding-left: 1em !important;}”]

Specifications

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Series	Drive
Wheel Sizes	700C
Tire Compatibility	Clincher/ Tubeless

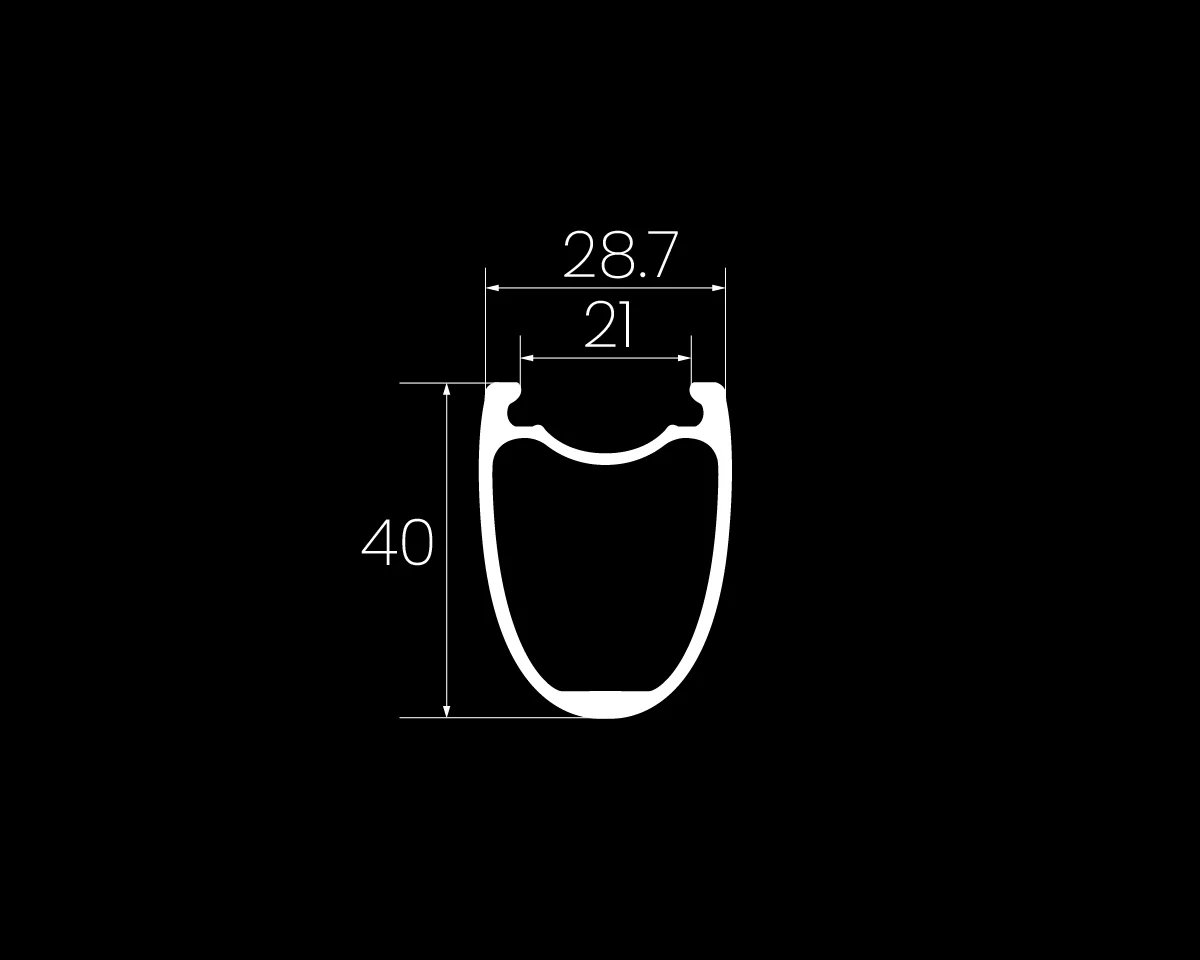

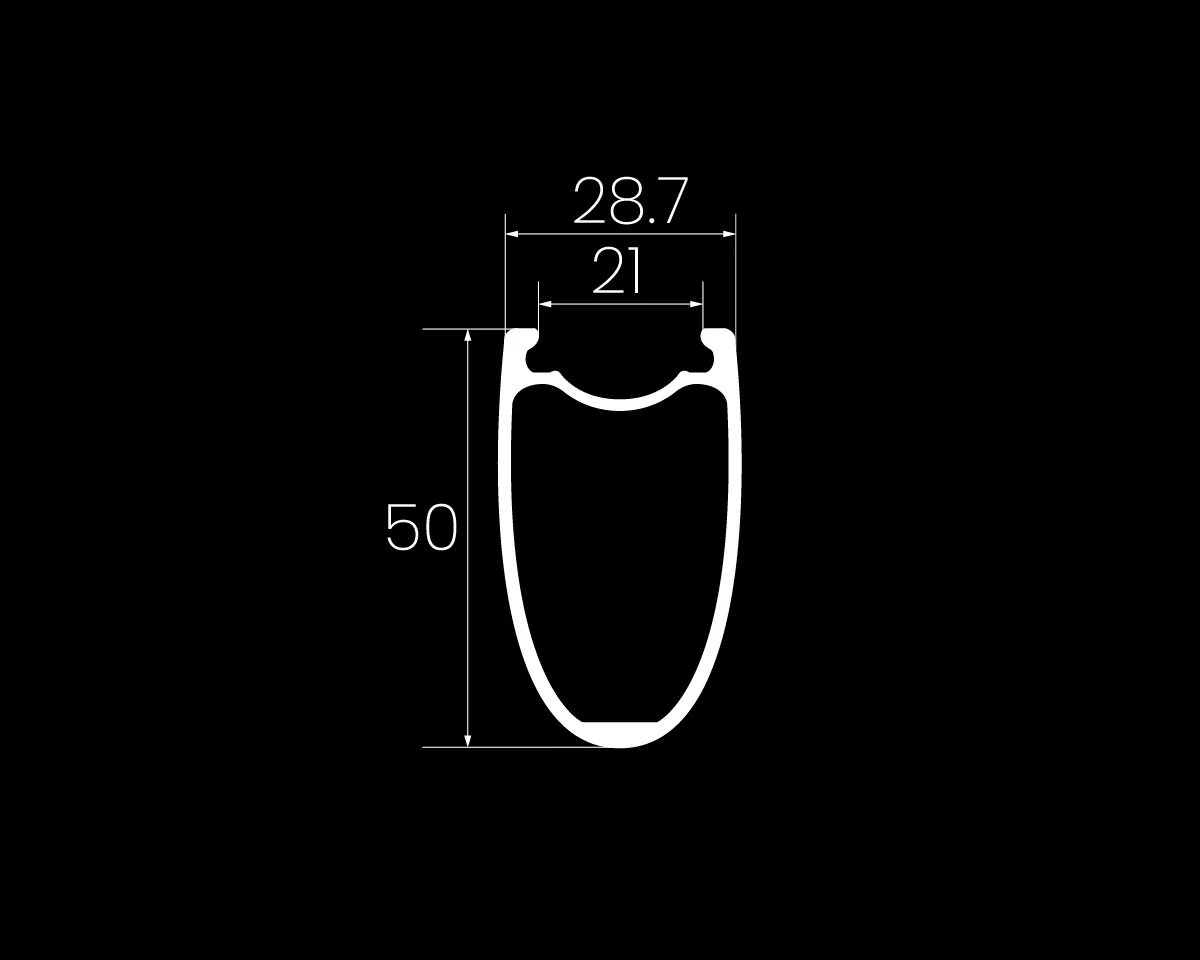

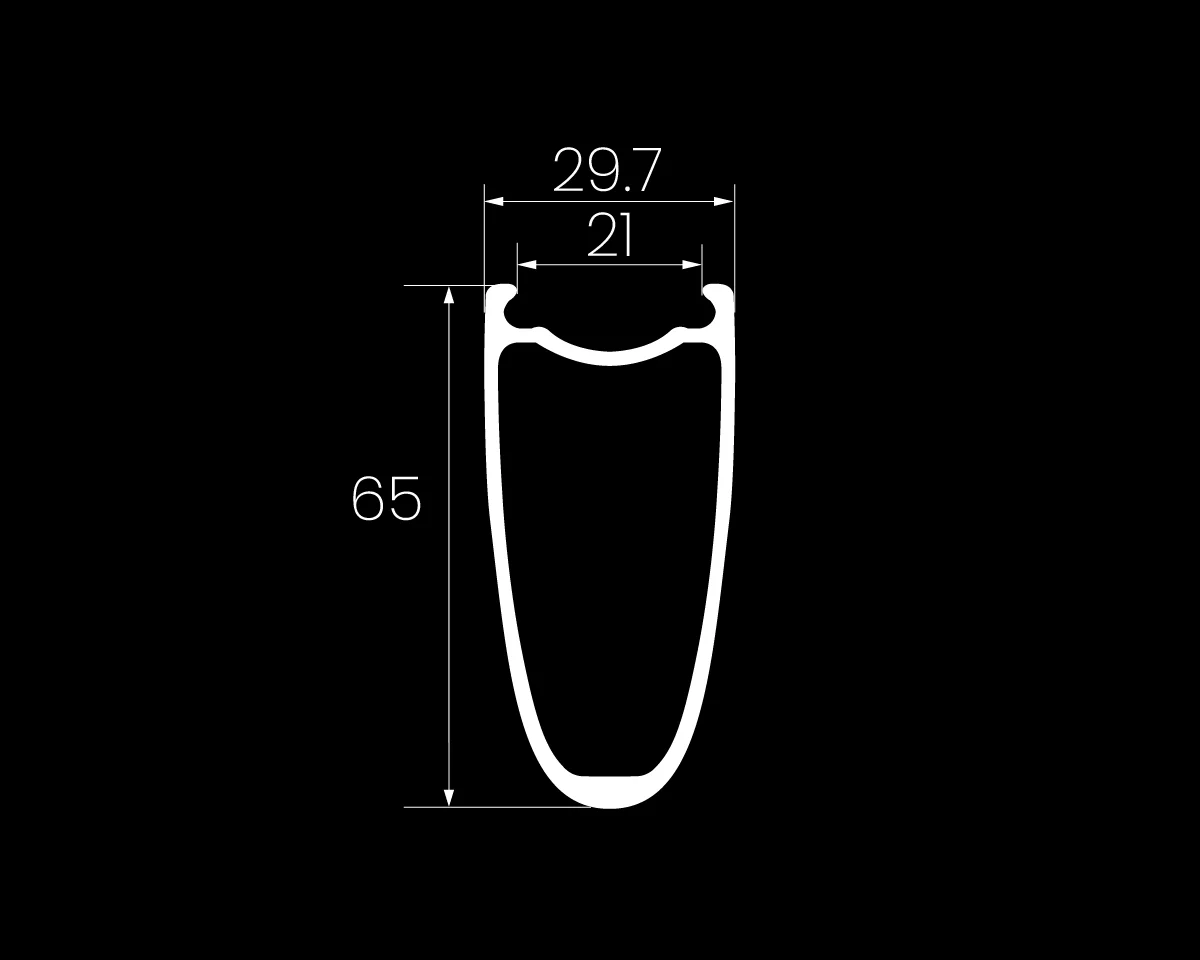

Rim Depth	Refer to Depth Options
Inner Width	21mm
Outer Width	28mm

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Hub
Front Hub Spacing	12x100mm / QR x 100mm
Rear Hub Spacing	12x142mm / QR x 135mm
Bearing	S&S Ceramic
Brake Compatibility	Disc (Center Lock)
Freehub Type	4 Pawls
Freehub Compatibility	Shimano / SRAM XDR / Campagnolo

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Spoke
Front Spoke Pattern	2X/Radial (2:1)
Rear Spoke Pattern	2X/1X (2:1)
Spoke Count	21F/24R
Spoke Type	Carbon Spoke (3.2mm)
Nipple Type	Alloy Secure Lock

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Rim Finish	Glossy Marbling Black
Extras	Rim tape(Installed), Tubeless Valves(Installed), Spokes(4)
Weight (Pair)	Refer to FAQ (without tubeless valves and rim tape)
Rider Weight Limit	275lbs/125kg
Compatible Tire Sizes	700 x 25-38C
Recommended Tire Sizes	700 x 25-30C
Certification	UCI Approved,CE Certified

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_single_image image=”8906″ img_size=”full” css=”.vc_custom_1654047310967{margin-right: 5% !important;margin-left: 5% !important;}” title=”DRIVE 50D Banner”][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”12048″ img_size=”full” onclick=”link_image” title=”Drive Mixed Depth Wheel Bundle wheelset Rims”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745723937833{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

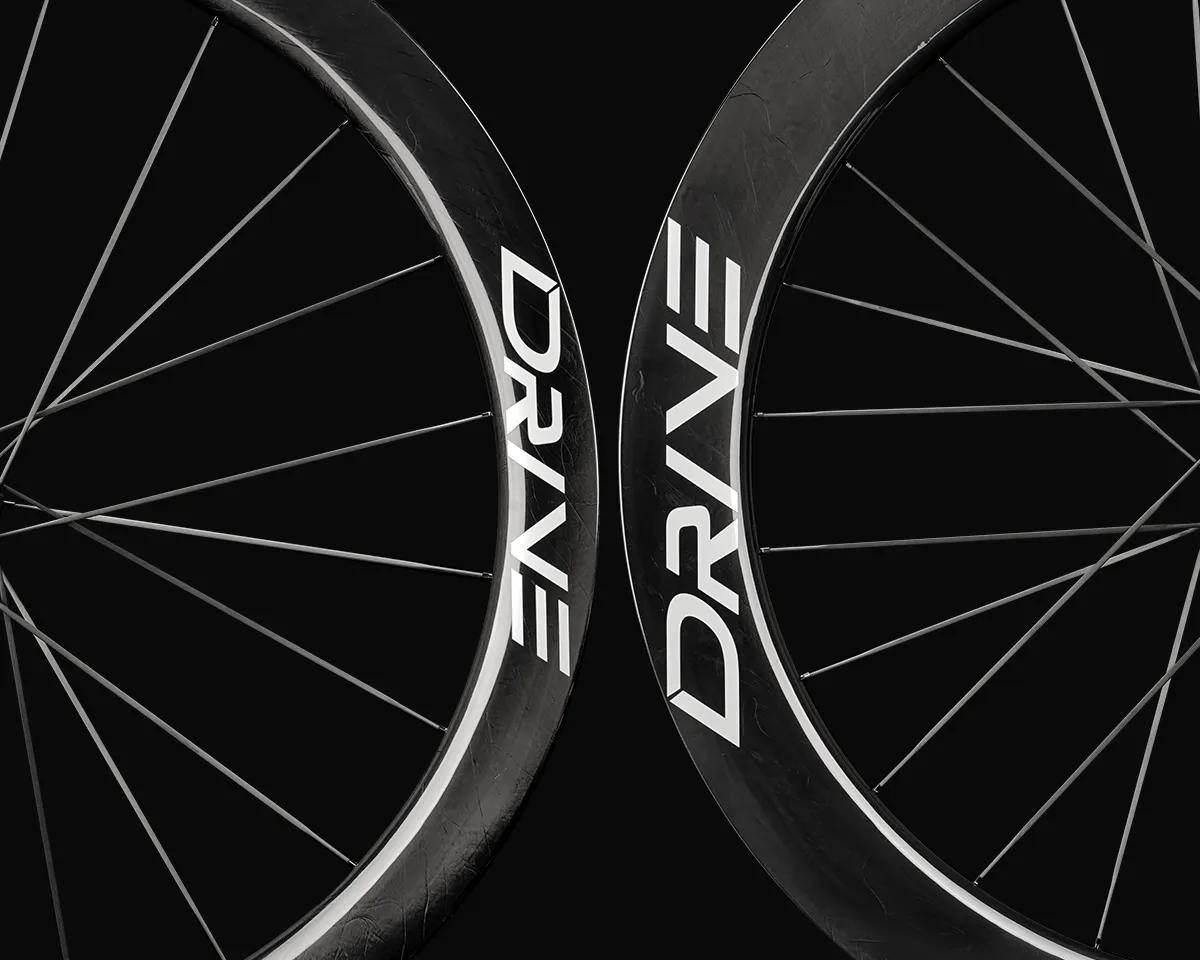

DRIVE RIMS

A Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best, we incorporate our own in-house UNI carbon fiber, a specific ratio of T700 and T800 carbon fiber (*Read more about UNI technology), making it not only strong, but also especially light and stiff. The U/V-shaped rim profile of the Drive DB Mixed Depth wheels was chosen to make the rims aero as well as stable in windy conditions. The 21mm inner rim width can accommodate wider tires for those looking for more grip and comfort.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”12049″ img_size=”full” onclick=”link_image” title=”Drive Mixed Depth Wheel Bundle Carbon Spokes” css=”.vc_custom_1669001435907{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1697620090939{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

CARBON SPOKES

What separates Drive wheels from most others is its use of high-modulus carbon spokes. The 3.3mm wide aero bladed spokes offer a 7% increase lateral response as compared to equivalent steel spokes. The spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give it a double-locking effect.

*Read more about CARBON SPOKES.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”12050″ img_size=”full” onclick=”link_image” title=”Drive Mixed Depth Wheel Bundle hub” css=”.vc_custom_1669001592578{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1745723948034{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

PERFORMANCE HUB

To get the most out of carbon fiber spokes, we specifically designed the hubs with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own hubs with Fanuc CNC machines, allowing for a tolerance of 0.02mm. This accuracy is important for bearing longevity and low rolling resistance.

Discover the Hub Sound Here[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”12051″ img_size=”full” onclick=”link_image” title=”Drive Mixed Depth Wheel Bundle Ceramic Bearings” css=”.vc_custom_1669001706143{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1697620132573{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

CERAMIC BEARINGS

The Drive front hub uses two 6803 mixed ceramic bearings. The Drive rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.

*Read more about ceramic bearings.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_single_image image=”12032″ img_size=”full” css=”.vc_custom_1668761782509{margin-right: 5% !important;margin-left: 5% !important;}” title=”in the box disc brake drive”][/vc_column][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]

In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
