Specification

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Series	27.5ER PRO36
Rim Type	Tubeless Compatible
Rim Depth	28mm
Inner Width	30mm
Outer Width	36mm
Profile	Asymmetric
Offset	3.5mm
Bead Type	Hookless

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Recommended Tire	2.2”-2.7”
Max Tire Pressure	50psi/3.4bar
Intended Use	Cross Country&All Mountain
Weight	F.676g R.767g
ERD	536mm
Maximum Rider Weight	120kg
Extras	Tubeless Valves / Rim Tape
Assembly Method	Handbuilt

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Hub
Front Hub	Qr*100/15*100/15*110mm
Rear Hub	Qr*130 /12*142/12*148mm
Brake Interface	6-bolt&Center Lock
Hub Type	Ratchet System
Cassette Body	Shimano/ XD/ Micro Spline

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Spoke
Front Spoke Pattern	3x
Rear Spoke Pattern	3x
Spoke Count	28F/28R
Spoke Type	Sapim CX Ray
Nipple Type	Sapim Secure Lock

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_single_image image=”6126″ img_size=”full” css=”.vc_custom_1640743726676{margin-right: 5% !important;margin-left: 5% !important;}” title=”XC mountain wheels”][/vc_column][/vc_row][vc_row css=”.vc_custom_1636434532727{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column width=”1/4″][/vc_column][vc_column width=”1/2″][/vc_column][vc_column width=”1/4″][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”4800″ img_size=”full” onclick=”link_image” title=”Elitewheels 27.5ER PRO36 Rims”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1650356041361{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

RIM

The rims are built to handle rugged terrain. The PRO36 wheels have a 30mm internal width and an overall height of 24mm which brings the rims more compliance. 28 spoke holes are molded into the rim, with a 2.8mm of offset to help balance spoke tension between the drive- and non-drive side. The rims uses a wide, hookless bead that’s meant to help prevent pinch flats – the larger surface spreads out the force of an impact.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”4799″ img_size=”full” onclick=”link_image” title=”Elitewheels 27.5ER PRO36 Rim type” css=”.vc_custom_1637560051402{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1650356059760{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

RIM TYPE

Asymmetry begets symmetry. Asymmetrical rims allow for even spoke tension, resulting in a stronger wheel and staying true to it. The T800 is used in the spoke hole location to increase the stretch resistance, while the T700 is used in the rim side to increase the resistance. Small ridges on either side of the drop channel help hold the tubeless tire in place. Beadlocks make it easier to seal tubeless tires.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”4798″ img_size=”full” onclick=”link_image” title=”Elitewheels 27.5ER PRO36 Hub” css=”.vc_custom_1637560119402{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1650356081945{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

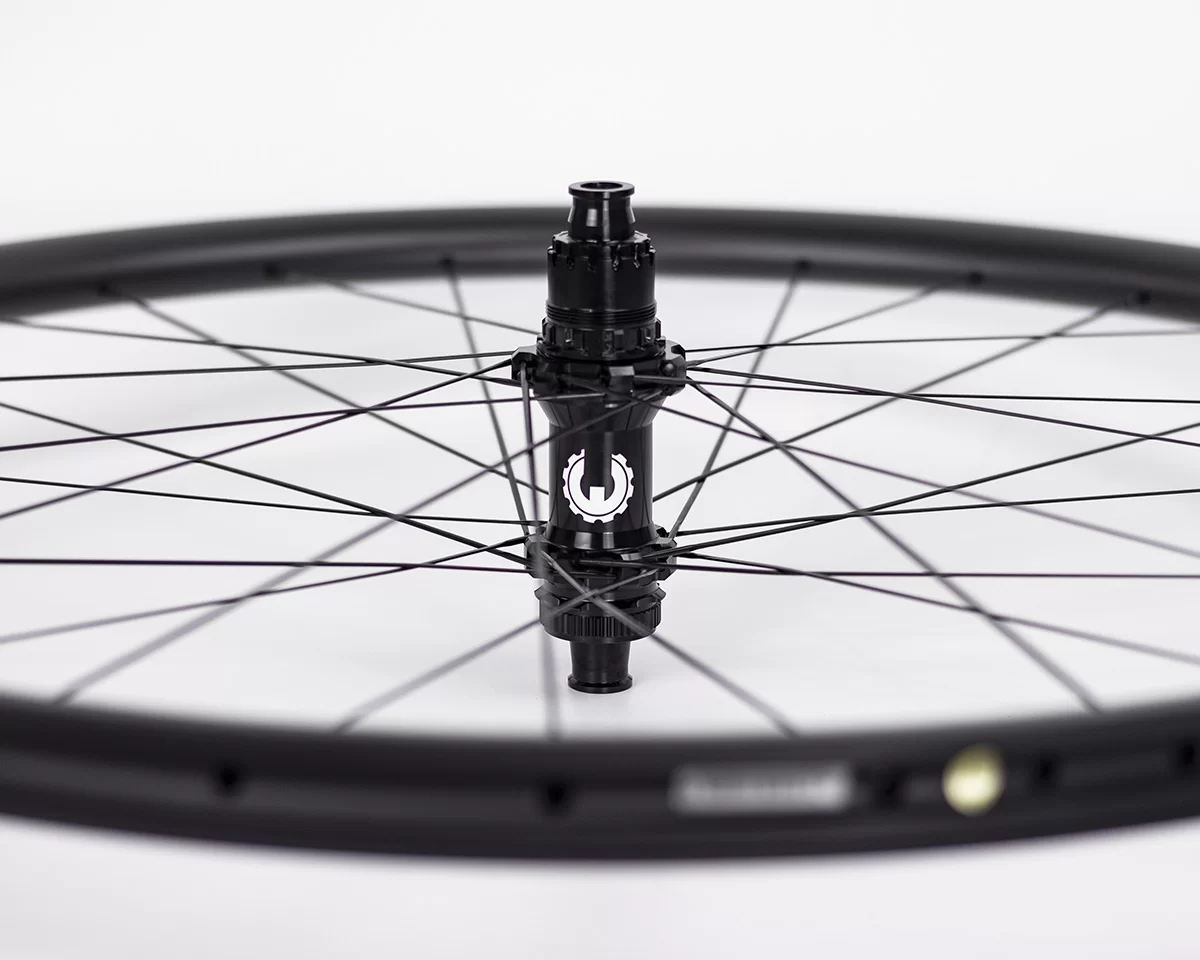

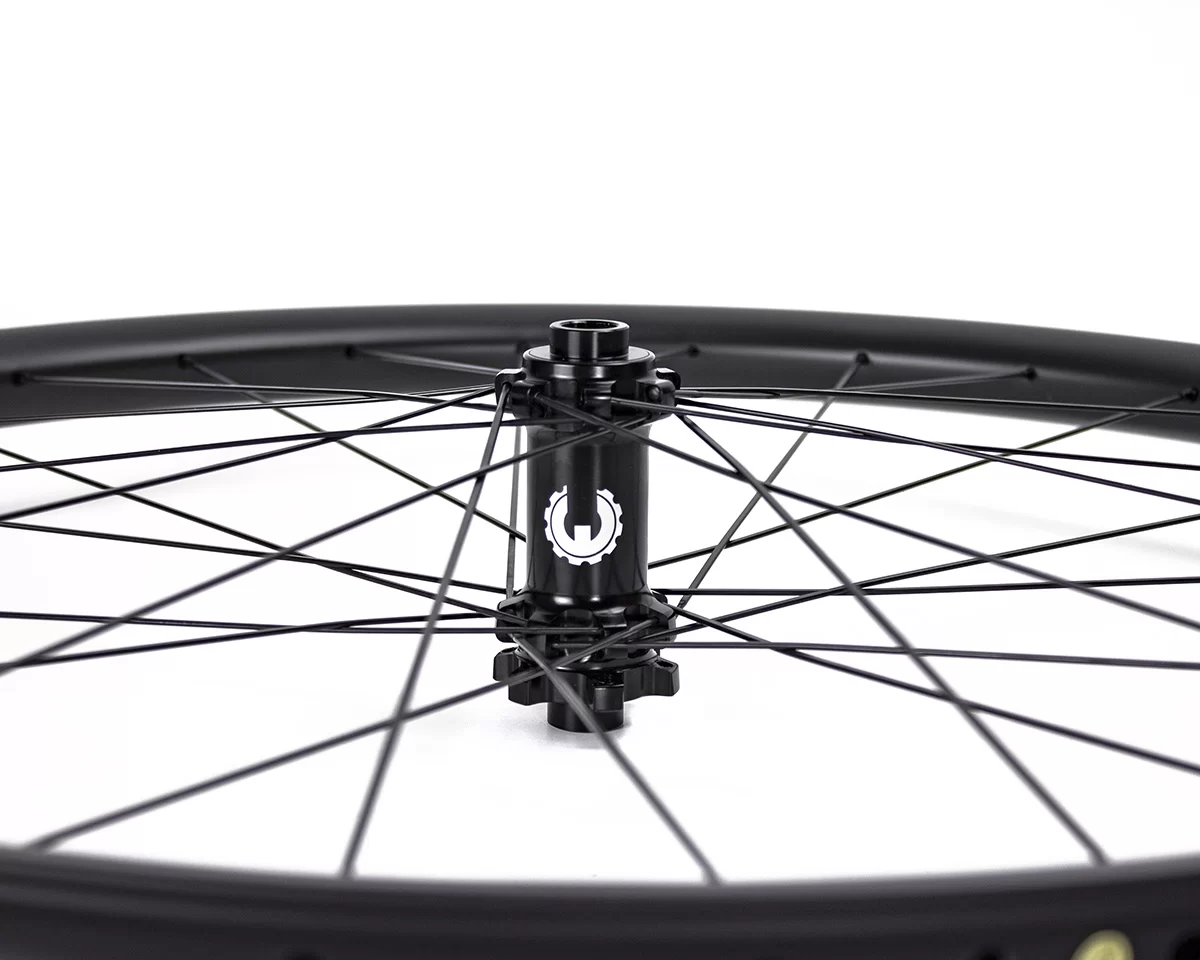

HUB

At the center of the PRO36 wheelset is the PRO hub system which is made of 7075 aluminum alloy material. These hubs use stiffness-boosting straight-pull spokes that are hand-laced to the rim by our expert wheels builders. The freehub is designed with a ratchet mechanism and comes as standard with 36 teeth. The bearings in this hub are from Taiwan TPI.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”4801″ img_size=”full” onclick=”link_image” title=”Elitewheels 27.5ER PRO36 Spokes” css=”.vc_custom_1637560270758{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1650356108057{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

SPOKE

2.8mm offset spoke holes balance spoke tensions to help preserve the quickness of the wheels and rigidity of the spokes.Standard use of SAPIM CX RAY spokes. Each spoke has 16 times the tension release. The deflection of the wheel is guaranteed to be within 0.2mm.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636697944253{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_empty_space height=”50px”][/vc_column][/vc_row]
