Specification

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Series	Drive
Wheel Size	700c
Tire Compatibility	Clincher/ Tubeless
Bead Type	Hooked

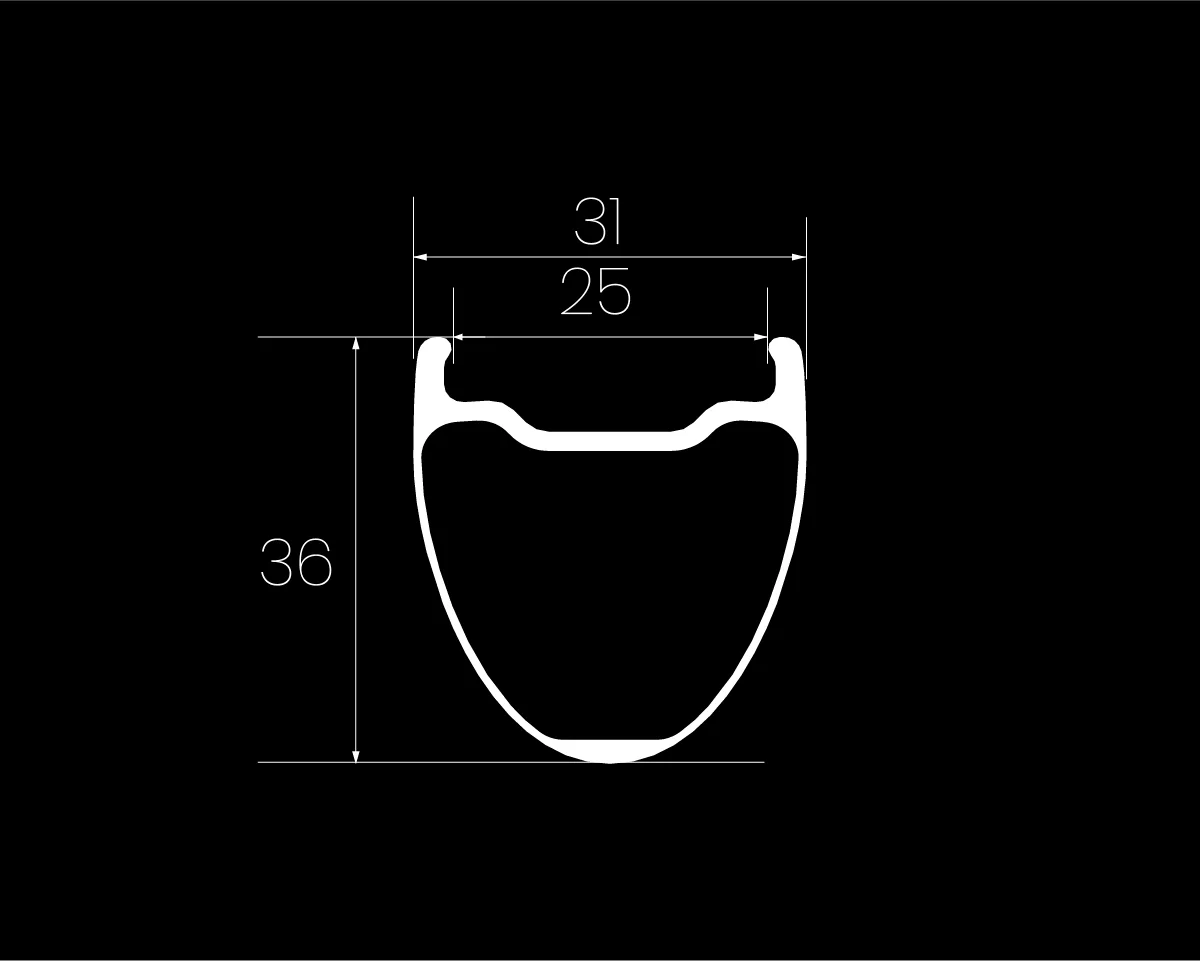

Rim Depth	36mm
Inner Width	25mm
Outer Width	31mm

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Hub
Front Hub Spacing	12x100mm
Rear Hub Spacing	12x142mm
Bearings	TPI Steel
Brake Compatibility	Disc (Center Lock)
Freehub Type	Ratchet
Freehub Compatibility	Shimano / SRAM XDR / Shimano MSR / Campagnolo

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Spoke
Front Spoke Pattern	Radial/2X(1:2)
Rear Spoke Pattern	1X/2X(1:2)
Spoke Count	21F/24R
Spoke Type	Sapim CX-Ray
Nipple Type	Sapim Secure Lock

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Rim Finish	Glossy Marbling Black
Extras	Rim Tape(Installed), Tubeless Valves(Installed)
Weight (Pair)	1325±30g(without tubeless valves and rim tape)
Rider Weight Limit	275lbs/125kg
Compatible Tire Sizes	700 x 28-65C
Recommended Tire Sizes	700 x 30-40C
Certification	UCI Approved

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”52248″ img_size=”full” onclick=”link_image” title=”Drive G36″][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1753869313321{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]WIDER RIMS

The Drive G36 features a wider 25mm internal rim width, that allows you to run wider, 700 x 28-65C tires, giving you more traction and confidence when riding. This flexibility allows for both road riding and trail riding. Advancements in carbon fiber layup have made it possible to reduce weight while further improving impact resistance.

The rims use an ETRTO-compliant reduced hook design that gives the benefits of a hookless rim, without sacrificing safety at higher tire pressures. The reduced hook design increases durability, creates a better tire contact patch for improved grip and stability, reduces weight, and improves aerodynamics due to an enhanced tire-to-rim interface.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”52249″ img_size=”full” onclick=”link_image” title=”Drive G36 Ratchet Hubs” css=”.vc_custom_1742433615314{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1742457749827{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]RATCHET HUBS

The Drive G36’s features our new Kinetic hub, which contains two high engagement 50T(7.2°) star ratchets machined into a conical shape, which allows for a increase in surface area. This leads to increased longevity and durability, as torque can be distributed over a larger area. The Kinetic hub also makes use of a stronger spring, which reduces skipping and slipping under load.

The front and rear hubs both make use of hybrid Steel TPI bearings, which offer performance gains in rolling resistance, saving you precious watts. We machine our own high-precision hubs in-house with Fanuc CNC machines to tolerances of just 0.02mm, improving longevity. The hubs also feature waterproof seals to eliminate ingress, preventing bearing contamination.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”52251″ img_size=”full” onclick=”link_image” title=”Drive G36 Race-Ready Spokes” css=”.vc_custom_1742433648118{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1741592004031{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]RACE-READY SPOKES

Sapim CX-Ray, spokes are known for being lightweight and durable, making them the favorite of pro riders. We take precautions to ensure that spoke windup is minimized so wheels don’t go out of true. After the initial truing, the wheel is sideloaded. This process is repeated again. The wheels are sideloaded a total of 16 times. We see this as an essential quality control standard. As a result, our wheels are guaranteed to stay within 0.2mm of true.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”52243″ img_size=”full” onclick=”link_image” title=”Drive G36 Durability” css=”.vc_custom_1742433663654{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1741592012785{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]DURABILITY

At Elitewheels, we do all of our own testing. During the development phase, each wheelset undergoes more than 20 tests. The Drive G36 has flawlessly passed our 20,000km rough surface factory/laboratory tests which simulate gravel riding conditions, far exceeding the en 17406 test standard.

In our maximum vertical impact test, the G36 passed, making it 2.7x stronger than UCI’s standard, giving you peace of mind when riding in rough terrain.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1698029028762{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner css=”.vc_custom_1698029076216{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/4″ css=”.vc_custom_1698029620783{padding-right: 1% !important;}”][vc_single_image image=”9224″ img_size=”full” onclick=”custom_link” link=”https://www.elite-wheels.com//accessories/”][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1698029630174{padding-right: 1% !important;}”][vc_single_image image=”9216″ img_size=”full” onclick=”custom_link” link=”https://www.elite-wheels.com//product/extra-freehub-road/”][vc_column_text]

Extra Road Freehub
$45.00

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″ css=”.vc_custom_1698029649135{padding-right: 1% !important;}”][vc_single_image image=”9205″ img_size=”full” onclick=”custom_link” link=”https://www.elite-wheels.com//product/extra-spokes/”][vc_column_text]

Extra Spokes
$5.00

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/4″][vc_single_image image=”99159″ img_size=”full” onclick=”custom_link” link=”https://www.elite-wheels.com/product/sapim-brass-nipple-upgrade/”][vc_column_text]

Sapim Brass Nipple Upgrade
$10.00

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636697944253{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_empty_space height=”50px”][/vc_column][/vc_row][vc_row][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]

In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
