Specification

[/vc_column_text][vc_empty_space][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Rim
Wheel Size	700c
Tire Compatibility	Clincher/ Tubeless
Bead Type	Hooked
Rim Depth	35mm
Inner Width	22mm
Outer Width	32mm

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Hub
Front Hub Spacing	12x100mm
Rear Hub Spacing	12x142mm
Bearing	Ceramic
Brake Compatibility	Disc (Center Lock)
Freehub Type	4 Pawls
Freehub Compatibility	Shimano / SRAM XDR / Campagnolo

[/vc_column_text][/vc_column_inner][/vc_row_inner][vc_row_inner css=”.vc_custom_1636437343507{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636511322336{padding-bottom: 15px !important;}”][vc_column_text]

Spoke
Front Spoke Pattern	2X/Radial
Rear Spoke Pattern	2X/2X
Spoke Count	20F/24R
Spoke Type	Sapim CX-Ray
Nipple Type	Sapim Secure Lock

[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]

Other
Rim Finish	Glossy Marbling Black
Extras	Rim Tape(Installed), Tubeless Valves(Installed)
Weight (Pair)	1460±30g (Standard Hub) (without tubeless valves and rim tape)
Rider Weight Limit	275lbs/125kg
Compatible Tire Sizes	700 x 25-40C
Recommended Tire Sizes	700 x 28-35C
Certification	CE Certified

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636435287316{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][/vc_column][/vc_row][vc_row css=”.vc_custom_1636522597176{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625660188{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″ css=”.vc_custom_1636524634550{margin-top: -10px !important;background-color: #ffffff !important;}”][vc_single_image image=”25959″ img_size=”full” onclick=”link_image” title=”Marvel G35 Rim”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1753865595475{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

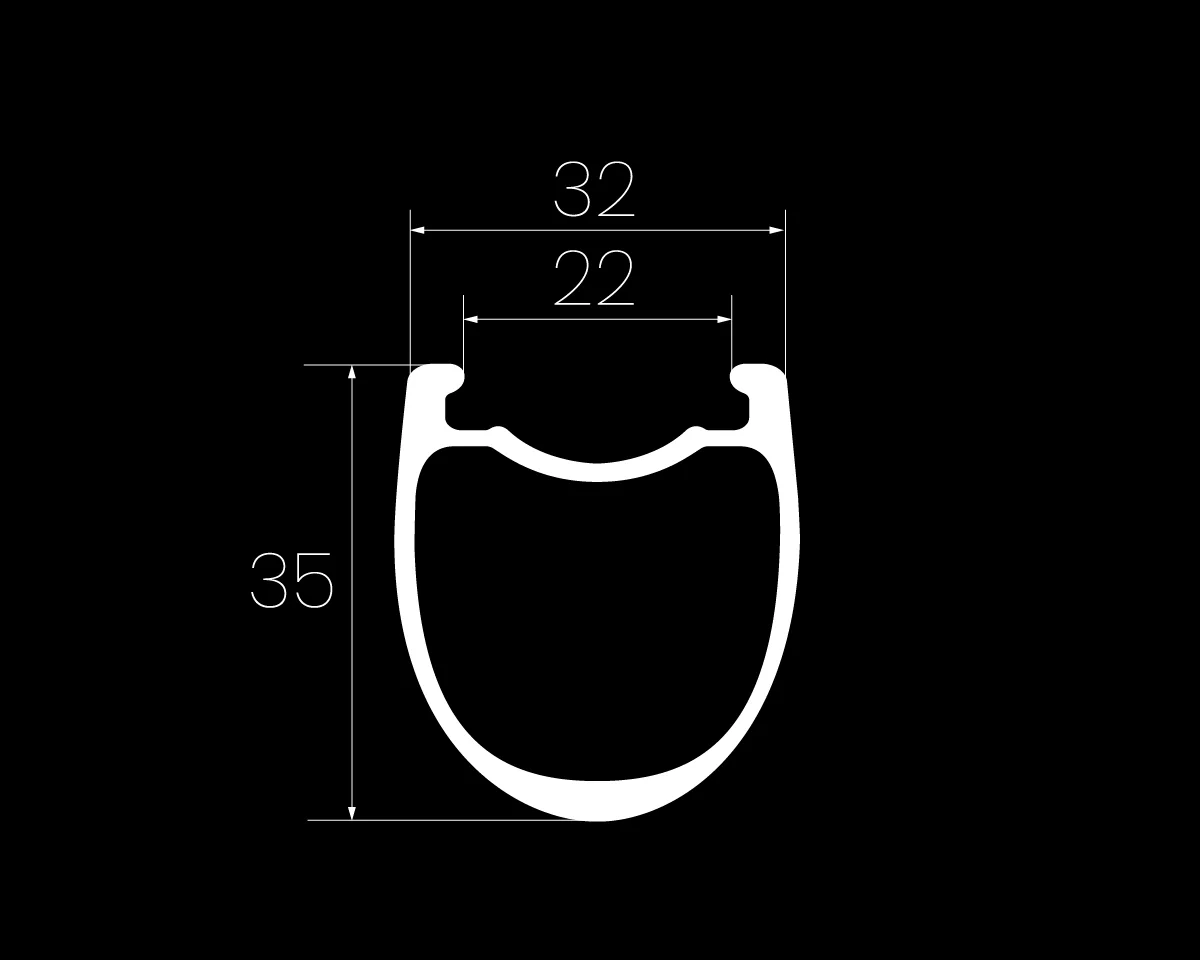

RIMS

The G35 wheels have an inner rim width of 22mm. The tubeless ready wheelset can accomdate 700 x 28-40C tires.
We use more than 50% Toray T800 carbon fiber to make the wheel both light and durable. In addition, using our R-angle design, fitting tires is easier than ever.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625730552{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”10642″ img_size=”full” onclick=”link_image” title=”Marvel G35 bearing HUBS” css=”.vc_custom_1662025402848{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1666165452308{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

HUB

The G35 wheelset includes a custom, high-end hub that uses a double-walled waterproof design. The hub flanges have been specifically designed to be simple and practical in form. This makes for easy cleaning of the hub after riding in muddy conditions.
As the hub uses premium ceramic bearings for less rolling resistance. Using these allows for a much longer service life as compared to steel bearings.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625761971{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”37460″ img_size=”full” onclick=”link_image” title=”Elitewheels gravel G35 Spokes” css=”.vc_custom_1723171492212{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1727080104137{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

SPOKES

Sapim CX-Ray spokes come standard. We take precautions to ensure that spoke windup is minimized so wheels don’t go out of true. After the initial truing, the wheel is sideloaded. This process is repeated again. The wheels are sideloaded a total of 16 times. We see this as an essential quality control standard. As a result, our wheels are guaranteed to stay within 0.2mm of true.[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row css=”.vc_custom_1636436261896{margin-right: -5% !important;margin-left: -5% !important;background-color: #ffffff !important;}”][vc_column][vc_row_inner content_placement=”middle” css=”.vc_custom_1636625782773{margin-right: 5% !important;margin-left: 5% !important;background-color: #f0f2f2 !important;}”][vc_column_inner width=”1/2″][vc_single_image image=”37459″ img_size=”full” onclick=”link_image” title=”Elitewheels gravel G35 bearing” css=”.vc_custom_1723171509866{margin-top: -10px !important;}”][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text css=”.vc_custom_1661507197810{margin-right: 20px !important;margin-left: 20px !important;padding-right: 5px !important;padding-left: 5px !important;}”]

BEARINGS

Both the front and rear hubs of the Marvel use hybrid ceramic bearings. The efficiency of the ceramic bearings will make it so that you can save extra watts even after years of riding.

[/vc_column_text][/vc_column_inner][/vc_row_inner][/vc_column][vc_column][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″][vc_column_text]

In order to provide riders with the best wheelsets, we seek to update and improve them as technology advances. Elitewheels reserves the right to change, add or remove the information contained on this website at any time, including equipment, specifications, models, colors, materials, and pricing, without prior notice. The shipped products will be based on the actual order information. Elitewheels thanks you for your understanding and support.
